Hi friends, in this post we will discuss how to install S4HANA 1610 Distributed System.

SAP S4HANA 1610 Distributed System Installation Part 1

SAP S4HANA 1610 Distributed System Installation Part 2

SAP S4HANA 1610 Distributed System Installation Part 3

System Landscape:

Application Server: Operating system: SUSE Enterprise server 12 SP3 for SAP

RAM VCPU HDD SWAP
52GB 4 400GB 100GB

Software Required:

Name Version Path
SWPM SWPM10SP24_1-20009701.SAR SUPPORT PACKAGES & PATCHES => By Alphabetical Index (A-Z) => S => SOFTWARE PROVISIONING MANAGER => LINUX ON X86_64 64BIT => SWPM10SP24_1-20009701.SAR
S4HANA Installation Export 51050947_6 to 51050947_9 INSTALLATIONS & UPGRADES => By Alphabetical Index (A-Z) => S => SAP S/4HANA => SAP S/4HANA 1610

SAP S/4HANA 1610 Installation Export from 51050947_6 to 51050947_9

HANA Client IMDB_CLIENT20_003_123-80002082.SAR SUPPORT PACKAGES & PATCHES => By Alphabetical Index (A-Z) => H => SAP HANA PLATFORM EDITION => SAP HANA PLATFORM EDITION 2.0 => SAP HANA CLIENT 2.0 => IMDB_CLIENT20_003_123-80002082.SAR
SAPCAR Latest version of SAPCAR
Kernel 51051432_3 INSTALLATIONS & UPGRADES => By Alphabetical Index (A-Z) => S => SAP S/4HANA => SAP S/4HANA 1610 => 51051432_3

Database Server: Operating system: SUSE Enterprise server 12 SP3 for SAP

RAM VCPU HDD SWAP
52GB 4 500GB 50GB

Software Required:

Name Version Path
HANA Server Hana 2 SPS 03 Rev 30 or later INSTALLATIONS & UPGRADES => By Alphabetical Index (A-Z) => H => SAP IN-MEMORY (SAP HANA ) => SAP HANA PLATFORM EDITION => SAP HANA PLATFORM EDITION 2.0 => INSTALLATION => 51053061_1 to 51053061_4

Mount all the mount points and transfer the relevant installers on relevant servers.

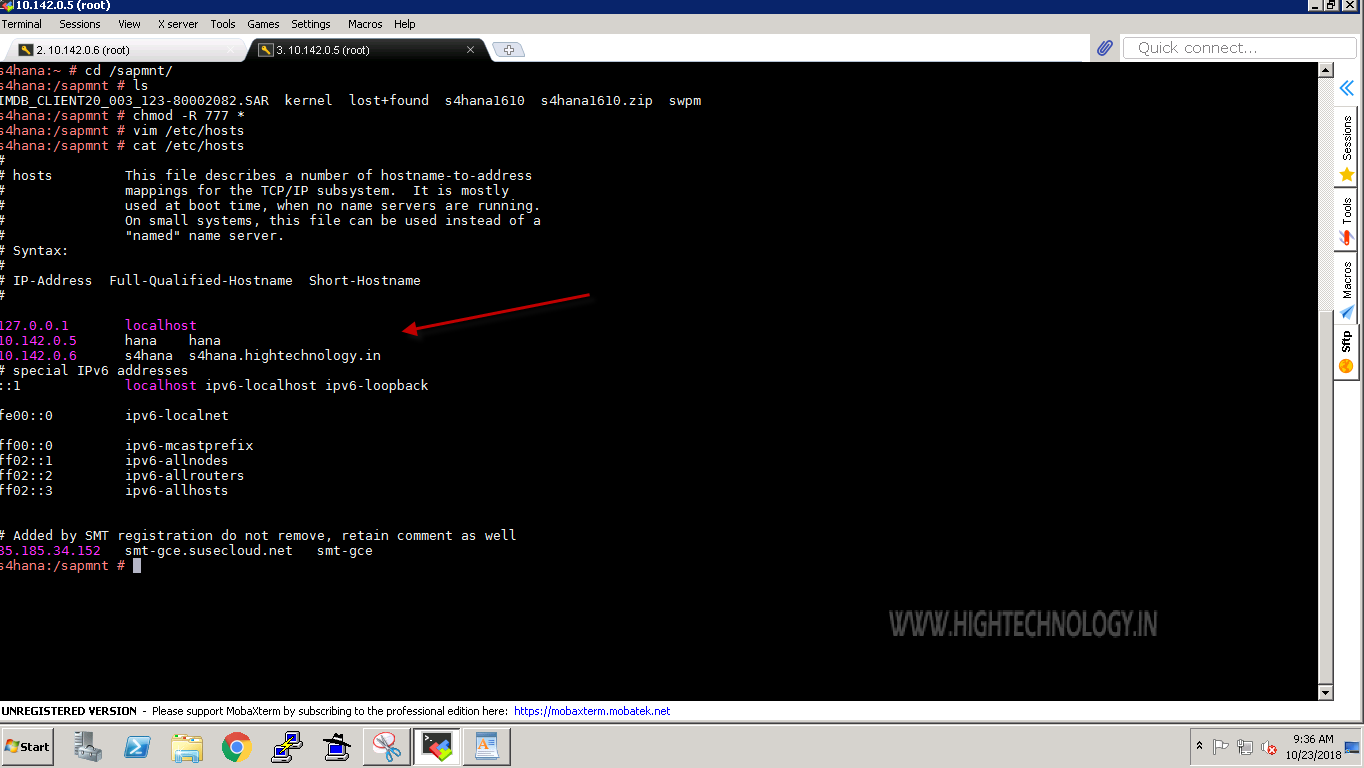

Do hostname, IP address and FQDN entry of both servers on database and application machines /etc/hosts file.

Mount all the mountpoints and transfer the relevant installers on relevant servers.

Step1: Now start the installation of Database on Database server. You can check the following video here:

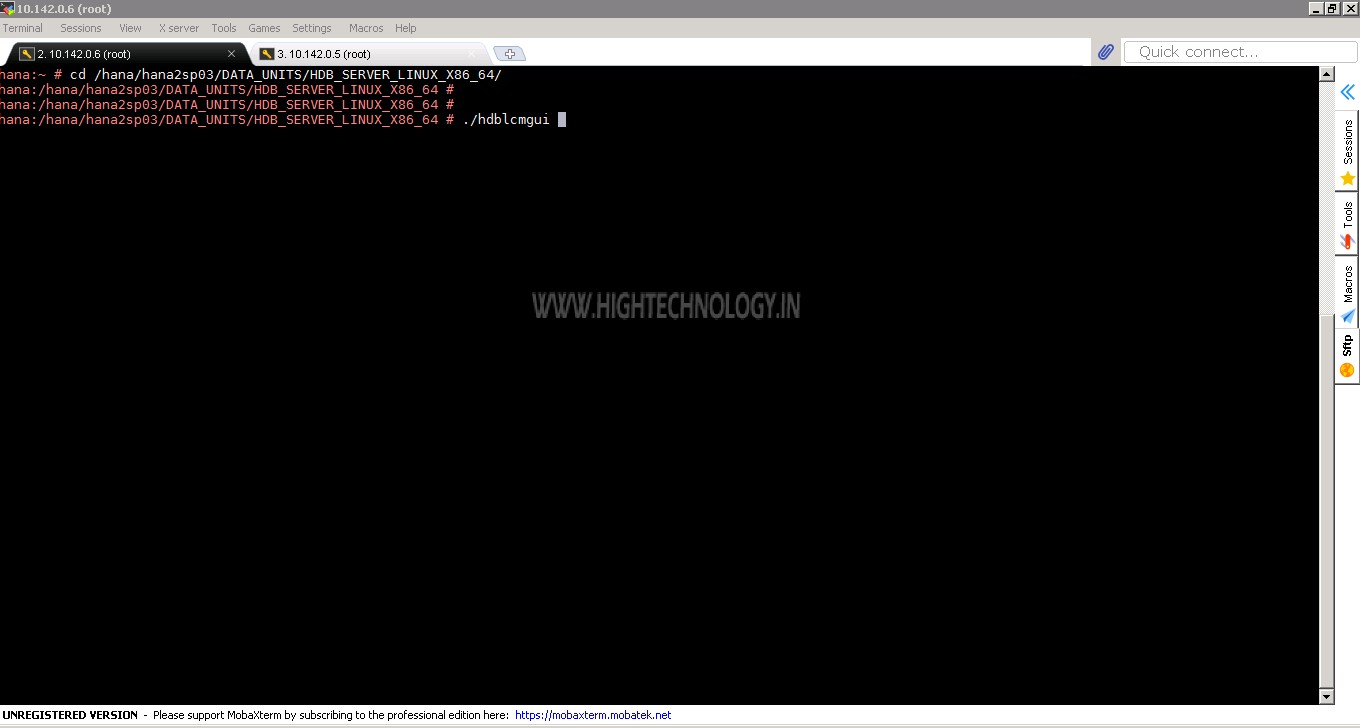

Step2: Execute ./hdblcmgui on following path(<directory path>/DATA_UNITS/HDB_SERVER_LINUX_X86_64) with root user, please ensure that you have 755 permission on instillation directory.

S/4HANA 1610 installation

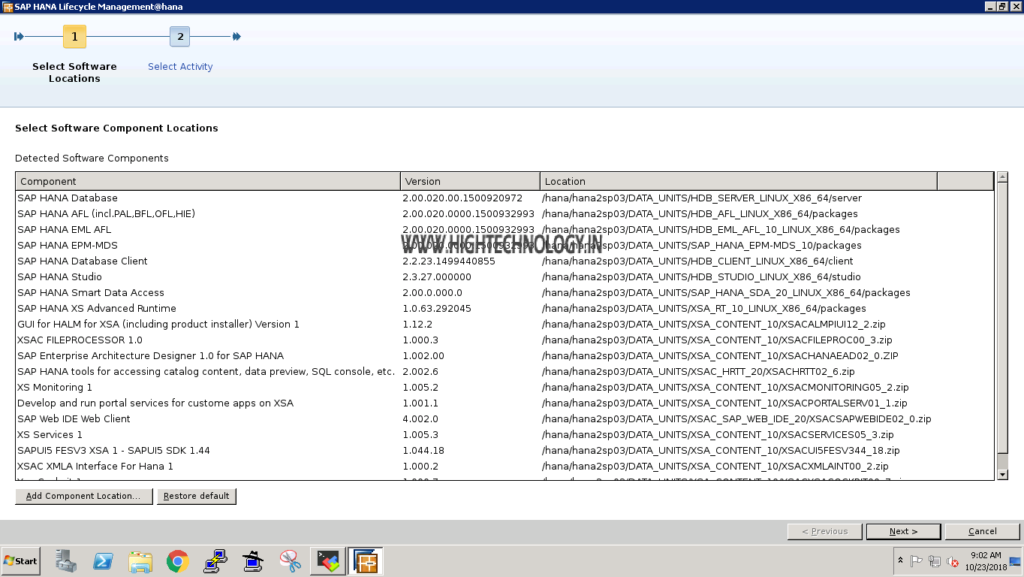

Step3: SAP Lifecycle management window will open, it will show you detected software packages. Now click on next.

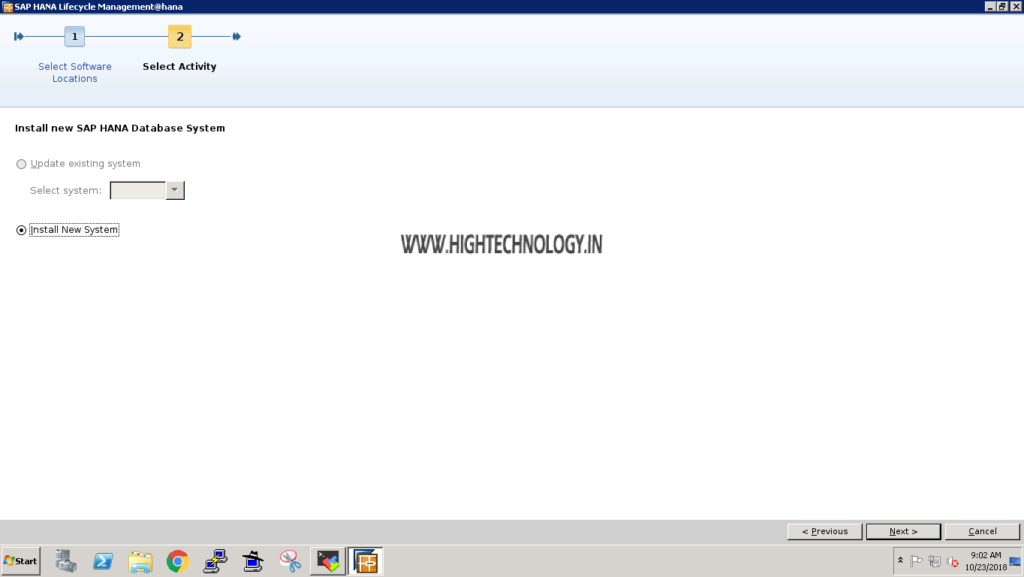

Step4: Now by default Install new system is checked, Click on Next.

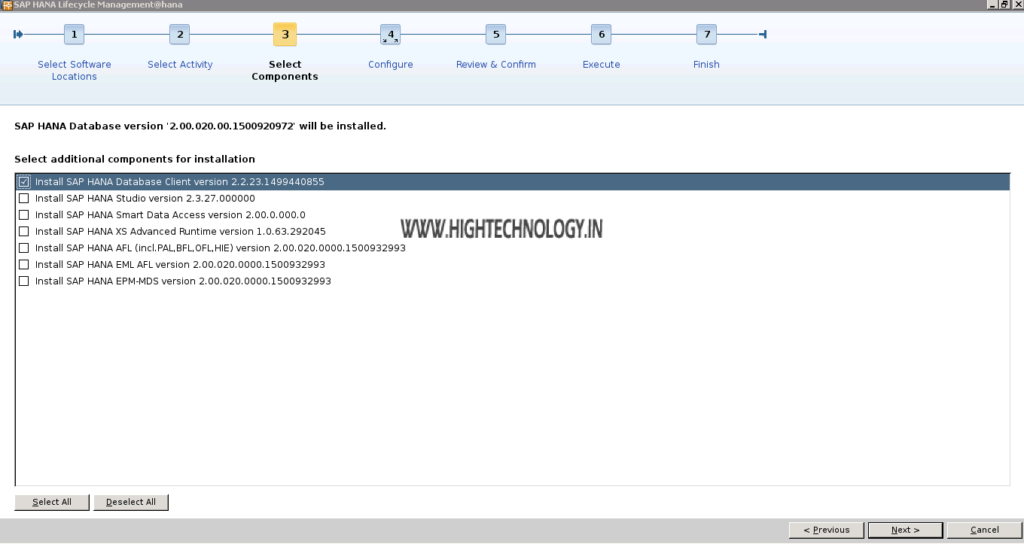

Step5: Now check the additional component, you want to install, and click on Next.

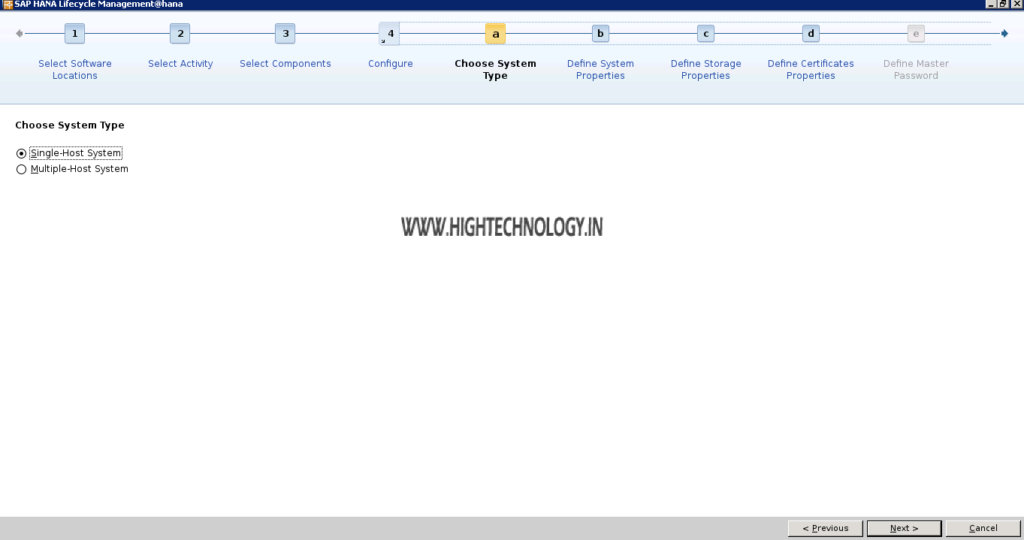

Step6: Choose System Types: Single or Multi Host system, and click on Next

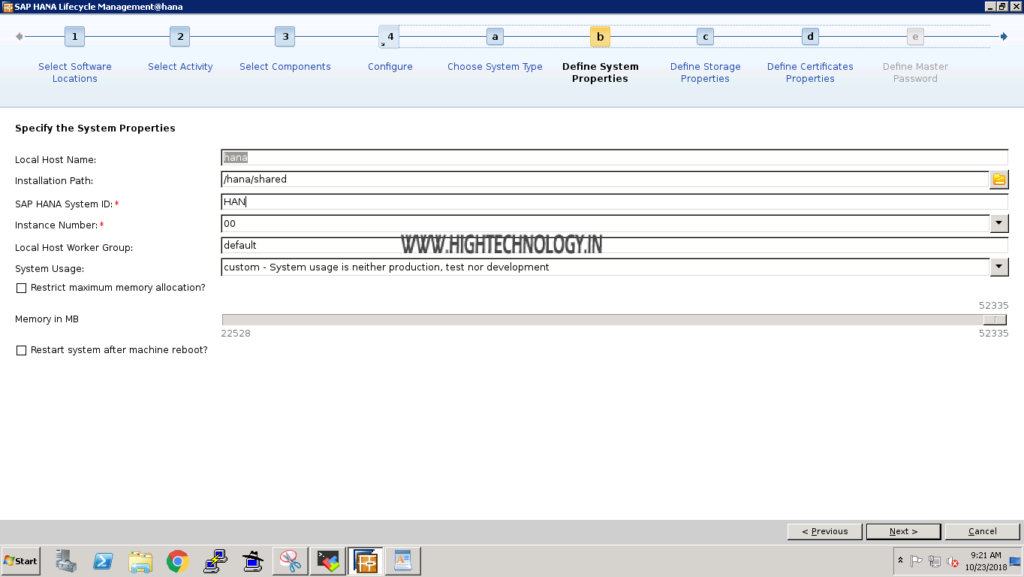

Step7: On this window define, SID, INSTANCE NUMBER, INSTALLATION PATH etc. And click on Next.

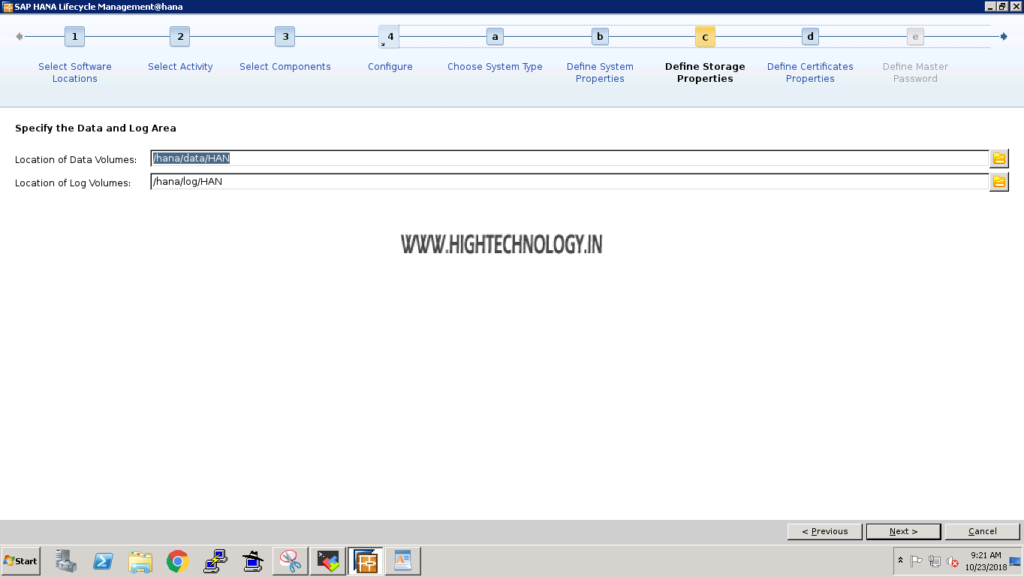

Step8: On this define window HANA database data and log path, and click on Next.

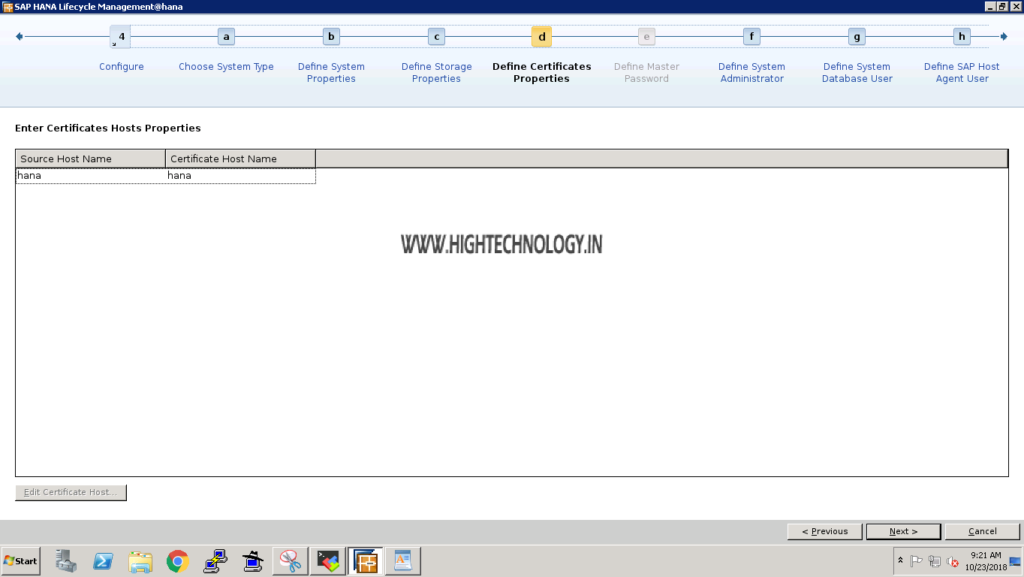

Step9: Now define certificate properties, and click on next.

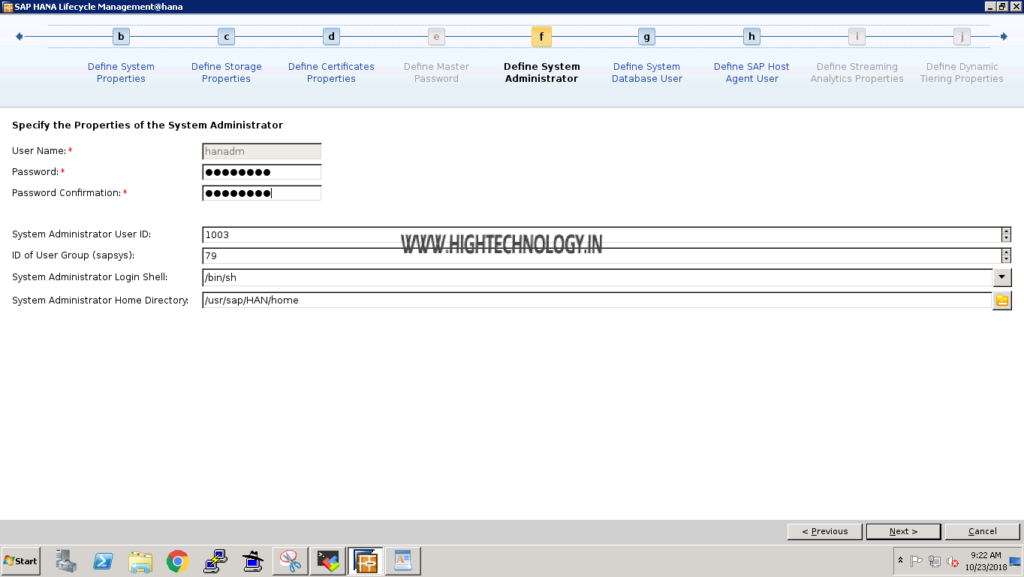

Step10: Now enter System Administrator <<SIDADM>> Password, and other details and click on Next.

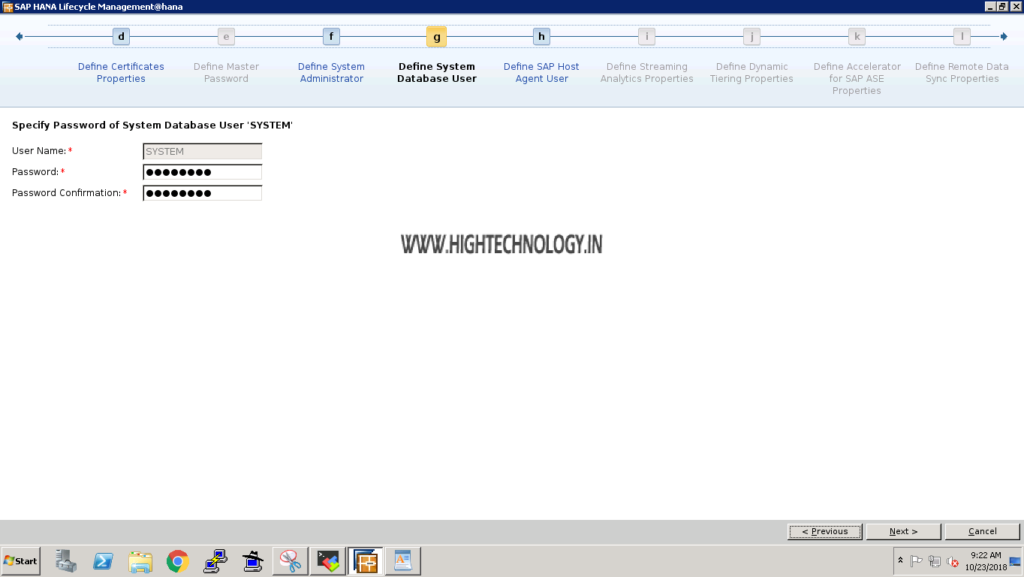

Step11: Enter SYSTEM database user password, confirm it and click on Next.

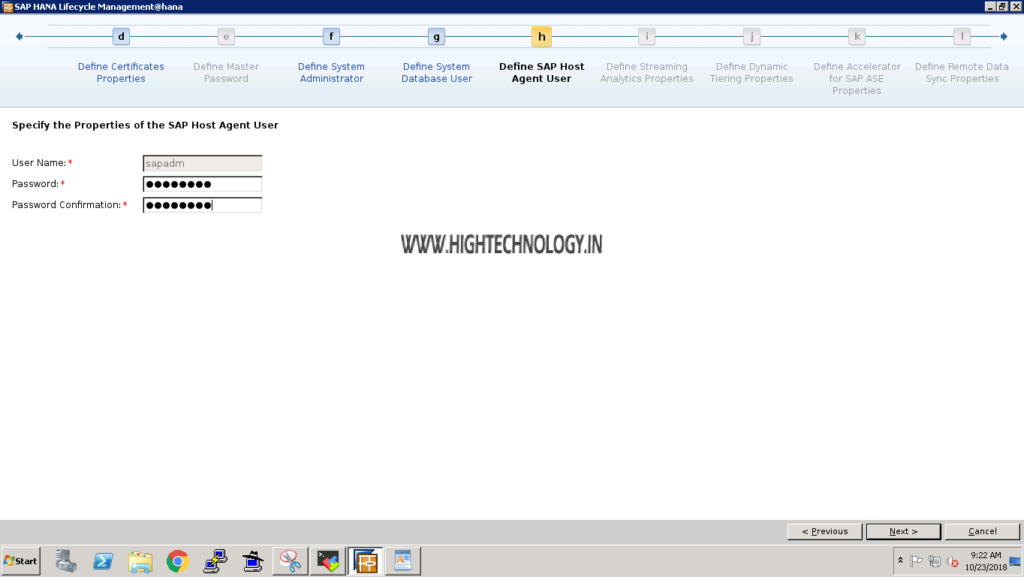

Step12: Enter sapadm password, confirm it, and click on Next.

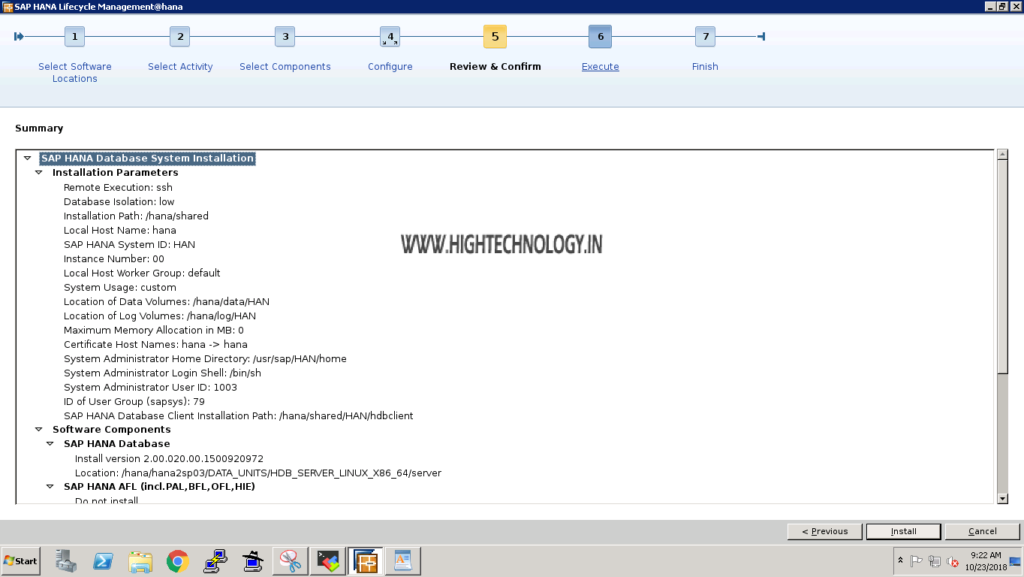

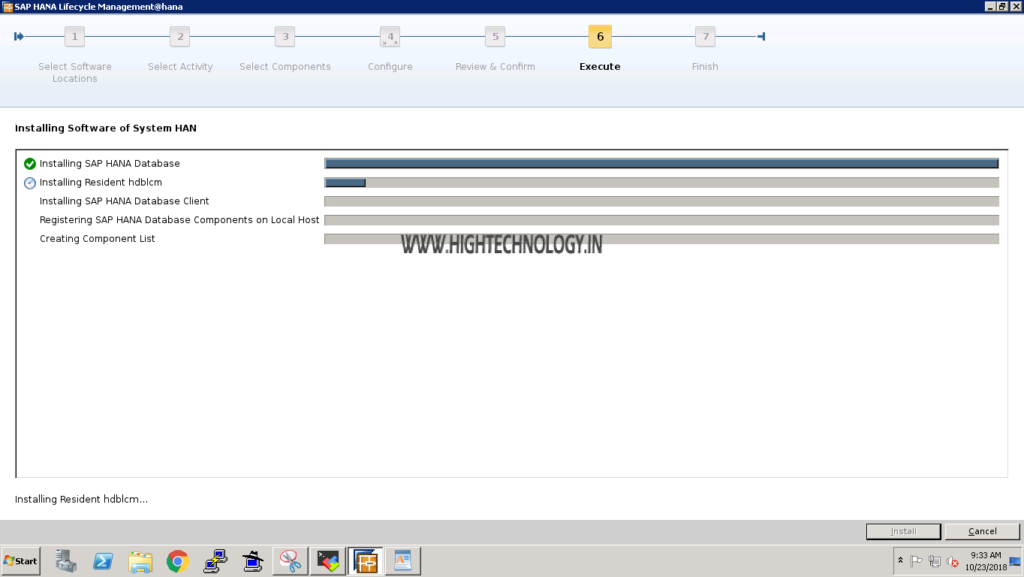

Step13: Review the installation summary and click on Next.

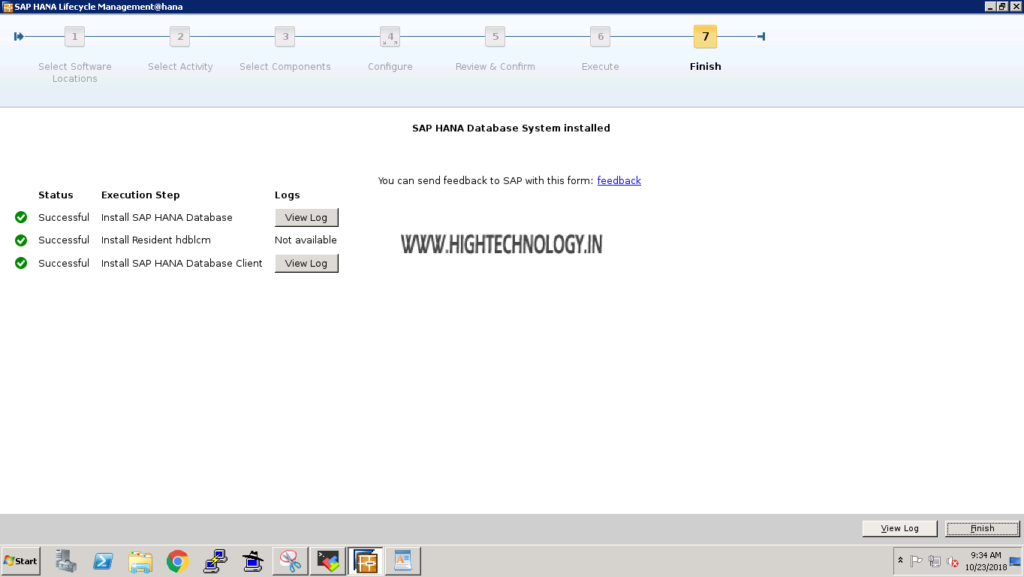

Step14: Once Installation is complete, Click on Finish. And you are done with installation of SAP Hana Database System.
