Operation Mode in SAP

Operation Mode in SAP

Operation modes in SAP is a concept provided by SAP to define more dialog processes during day time and more background processes in the night time. In SAP, we can define operation modes like day and night and configure more dialog work processes and less background work processes during day time and more background work processes and less dialog work processes during night time. We can set interval for day and night operation modes so that operation mode switch will happen at defined time and dialog work processes will be converted to background work processes in the night and vice versa.

How to Create Operation Mode in SAP :

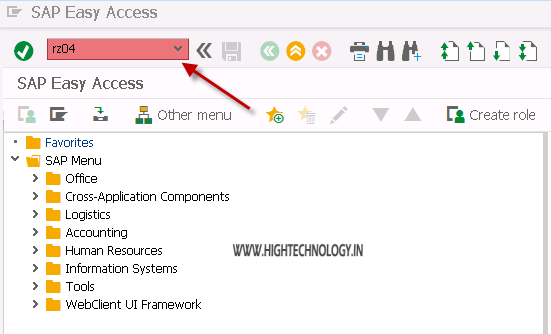

Step1) Enter Transaction Code: RZ04.

Operation Mode in SAP

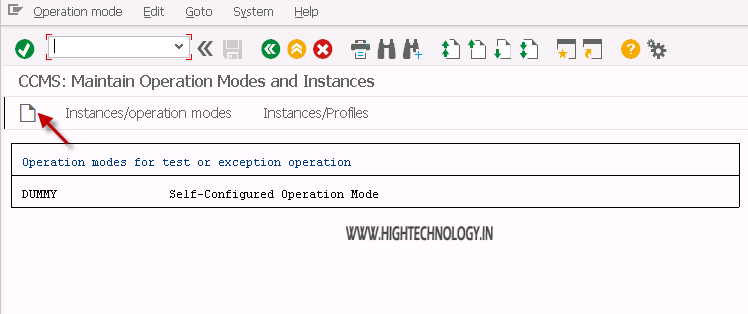

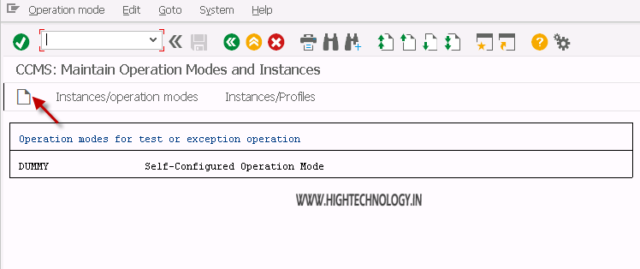

Step2) Click on Create Icon.

Operation Mode in SAP

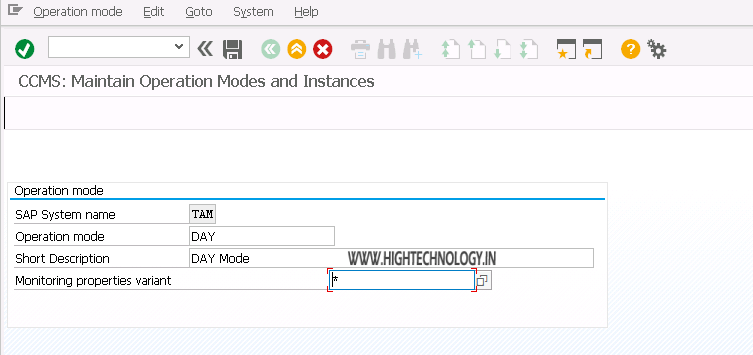

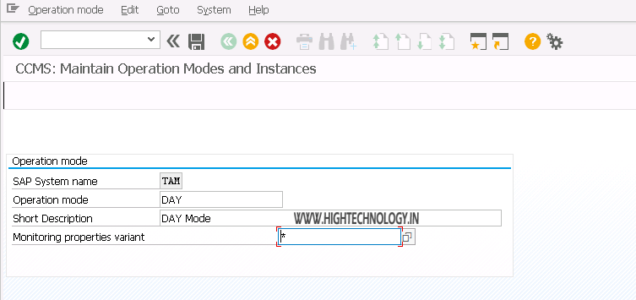

Step3) Enter Operation Mode name, Short Description and Monitoring Properties Variant.

Operation Mode in SAP

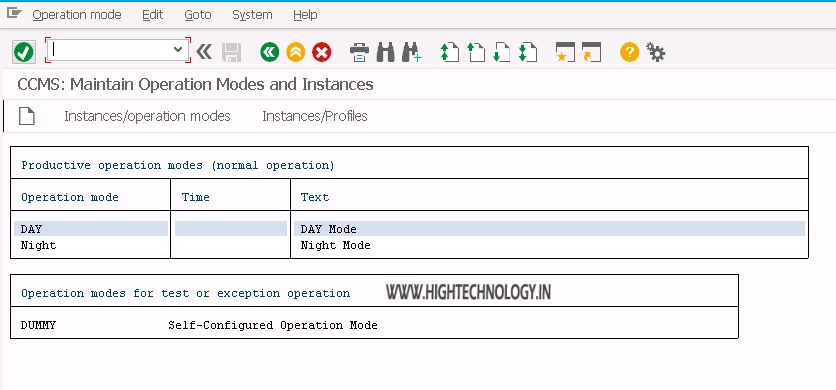

Step4) Create Two Operation Mode, one for Day & One for Night.

Operation Mode in SAP

Step5) Now Click Instances/Operation Modes. Another screen will be displayed.

Step6) Now Navigate to Settings > Based on Current status >New Instances > Generate.

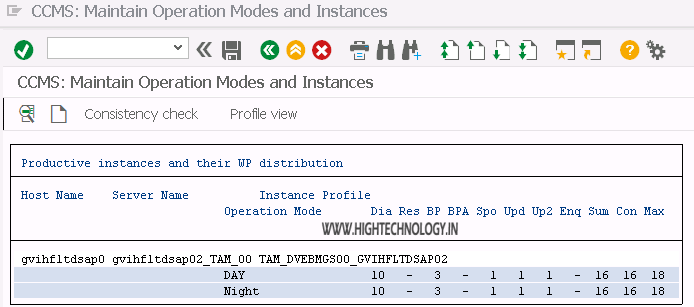

Step7) After that profile will get generated as shown below.Operation Mode in SAP

Step8) Place the cursor on DAY operation mode and double click on it get the work process distribution screen.

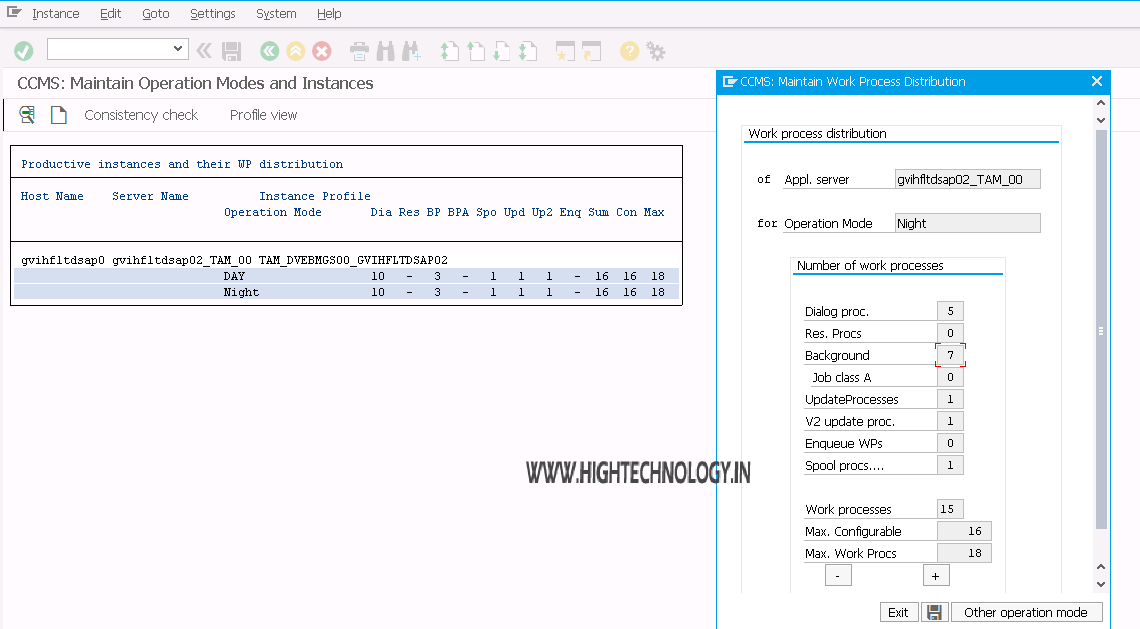

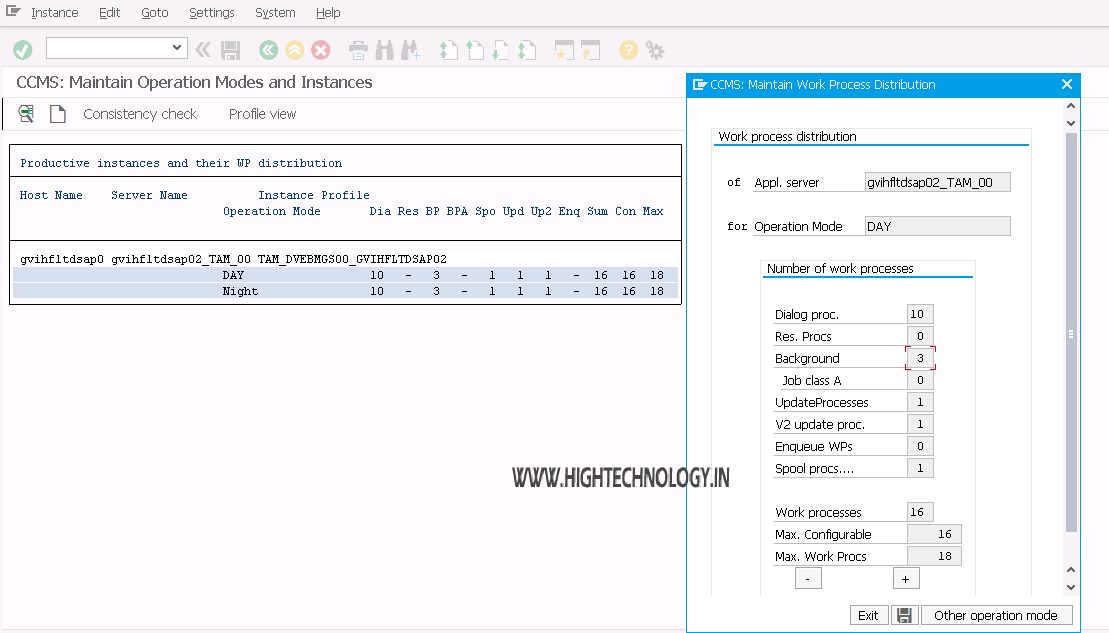

Step9) Now set the dialog work process and background work process and click on save.

Operation Mode in SAP

Step10) Repeat the Step 8 & 9 for Night operation mode.

Operation Mode in SAP

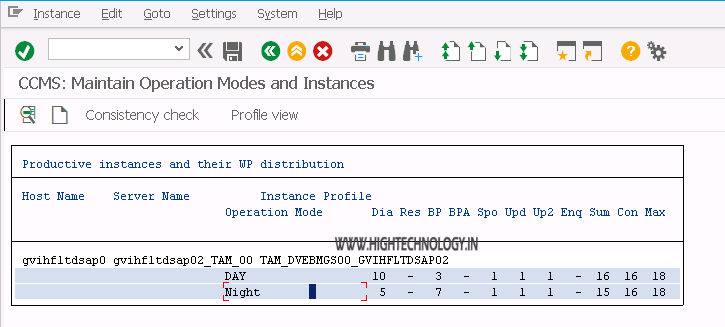

Step11) Please find below work process distribution after the changes done.

Operation Mode in SAP

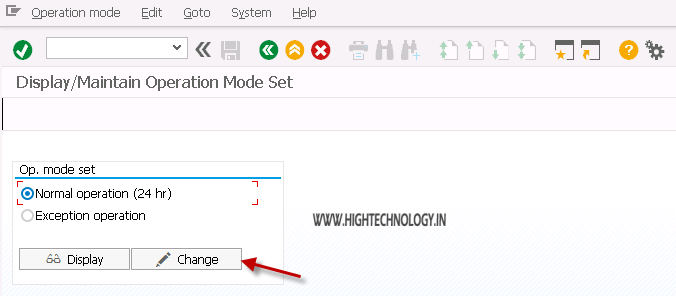

Step12) Now save this and goto transaction code SM63 as shown below and select normal operation (24hr) mode and click on change.

Operation Mode in SAP

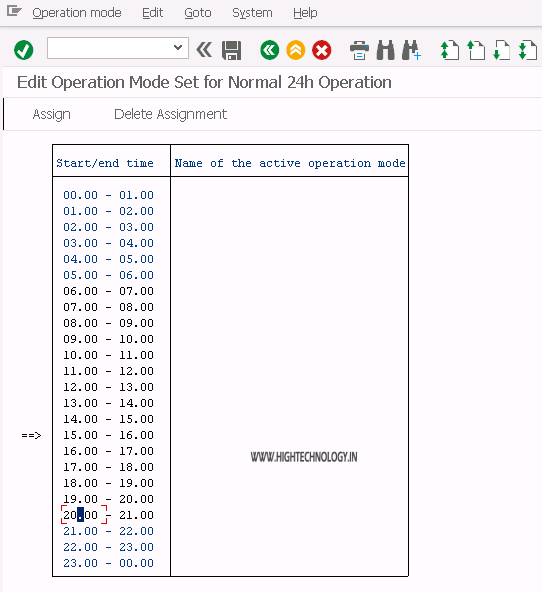

Step13) To set the start time of the day interval, click on start time and then navigating to Operation mode > Select interval. Then start interval is marked. After this place cursor at the end interval and again navigate to Operation mode > Select interval and confirm to mark the entire interval of day operation mode.

Operation Mode in SAP

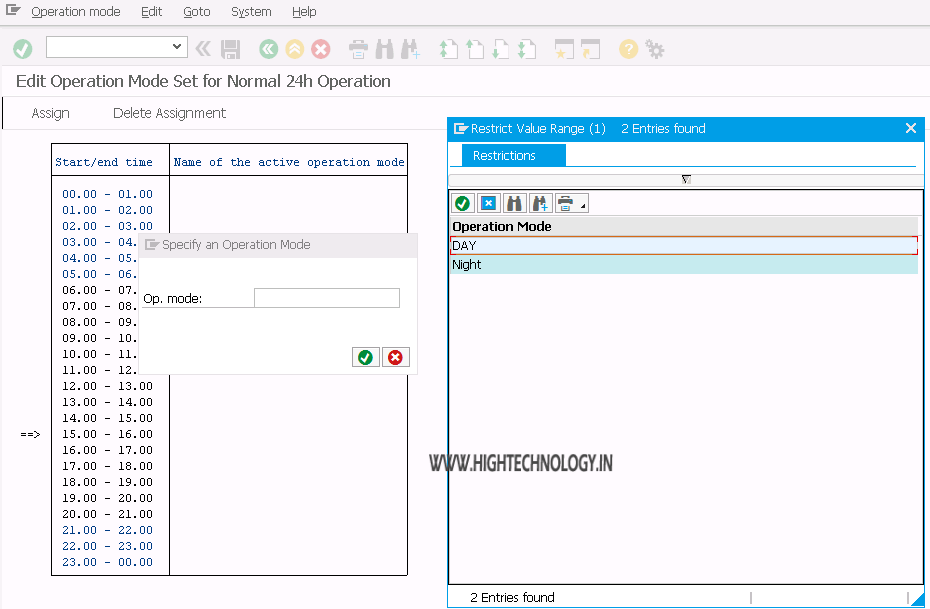

Step14) In the above screen, you can check that the interval marked is highlighted in different color. Now click on Operation Mode > Assign > Choose the Operation Mode for which you have selected interval.

sap operation modes

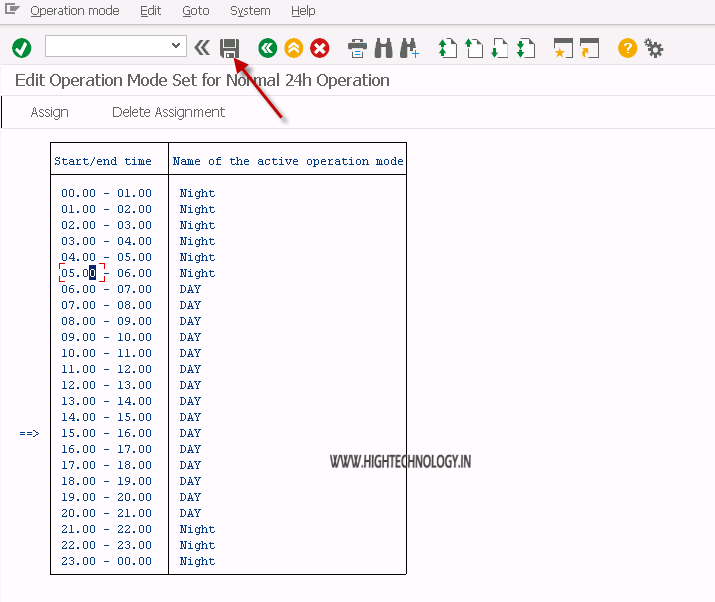

Step15) Repeat the Step 13 & 14 for setting interval for Night operation mode and click on save button.

Operation Mode in SAP

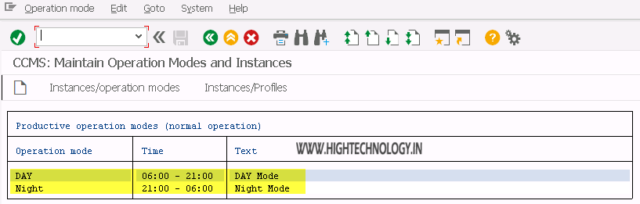

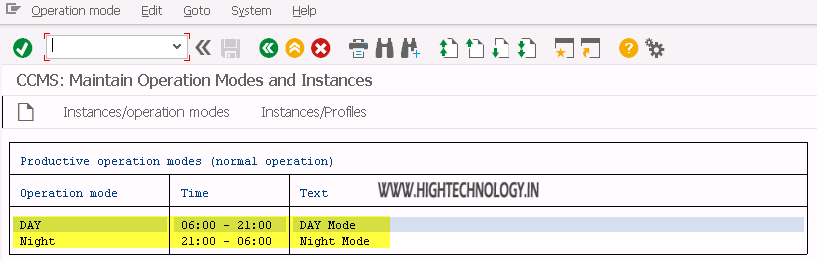

Now you can check Operation mode and their timings in RZ04 transaction code.

Operation Mode in SAP
